Modules

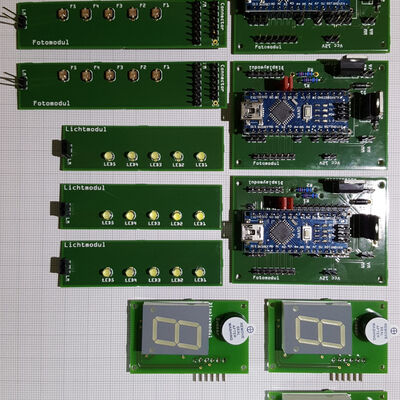

This chapter describes the electronics that make the game work. They are split into three cooperating modules, each holding a distinct part of the circuit on its own dedicated PCB. This keeps soldering and wiring simple — each small board can be populated and tested on its own before everything is connected. Each module has its own page describing it in detail.

• Card reader — Kartenmodul (card module)
• Display — Displaymodul
• Control board — Steuermodul (control module)
