Roof

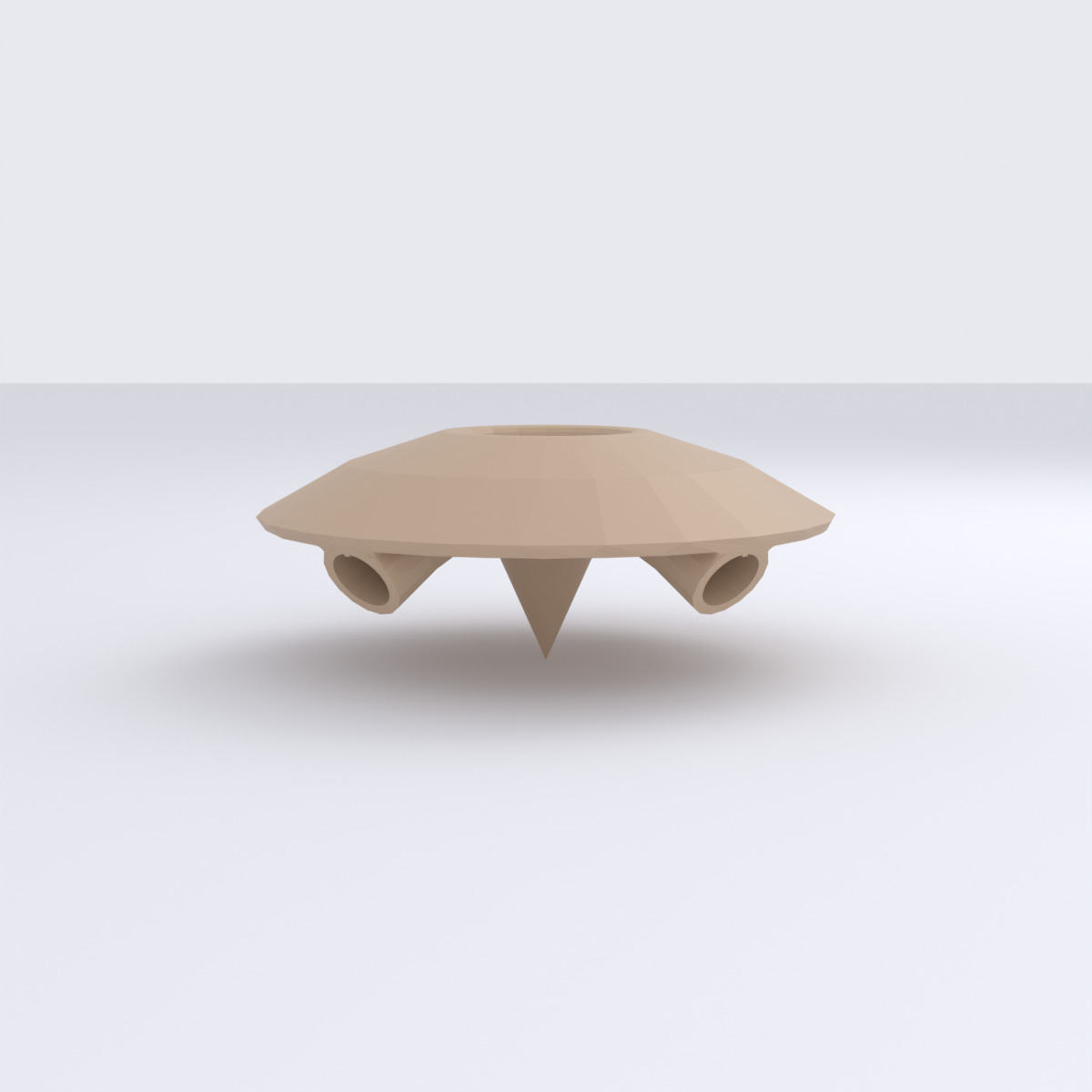

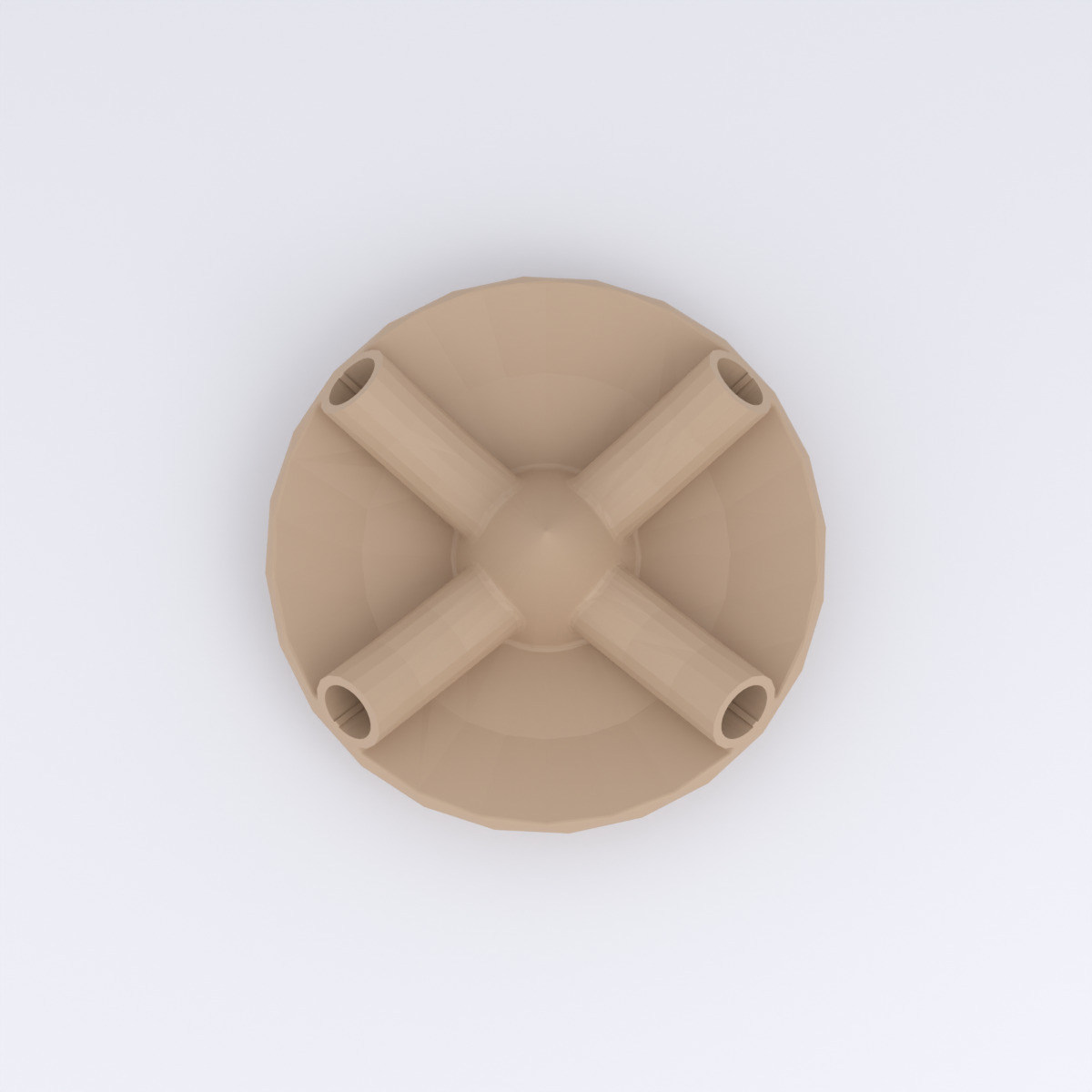

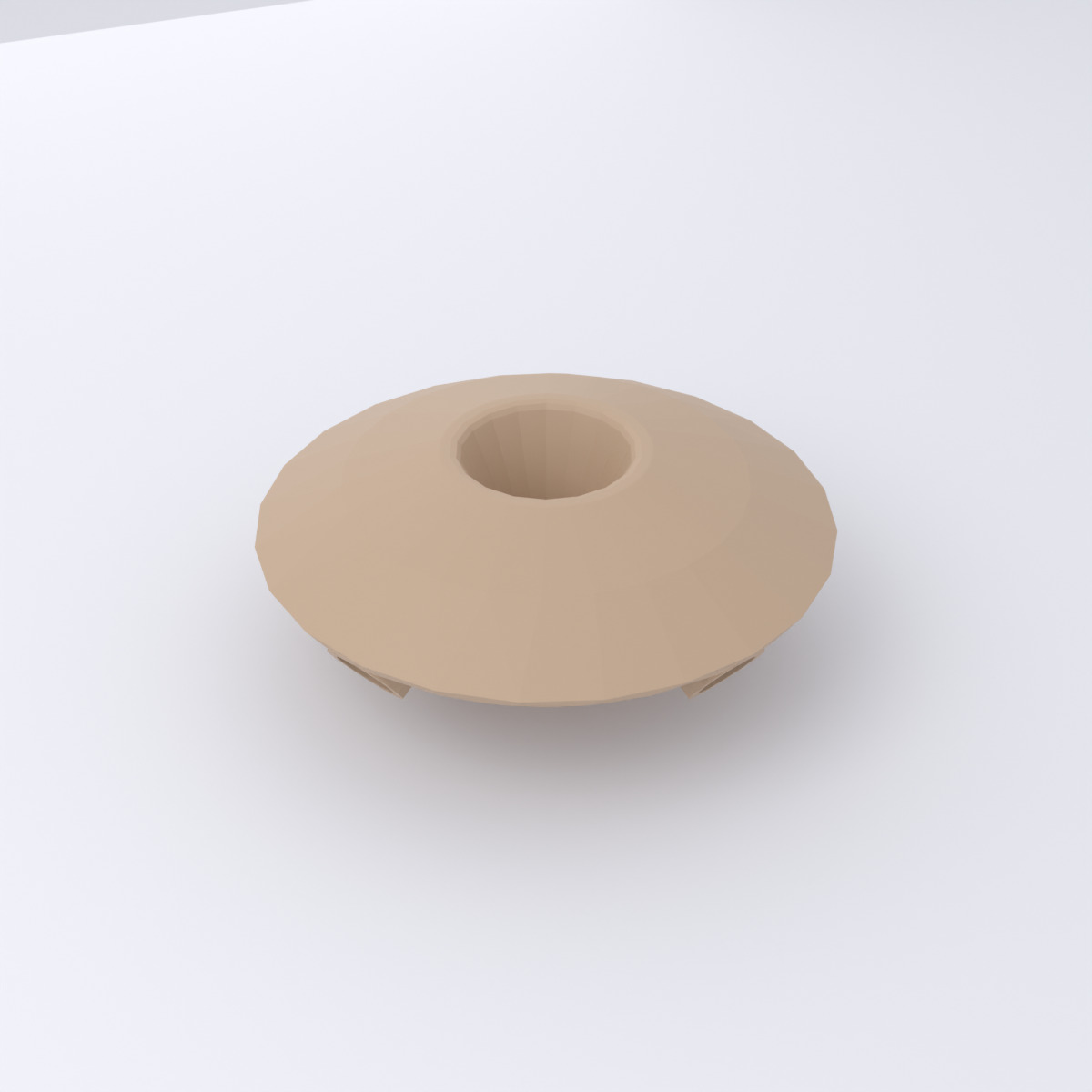

Dach-Spitze — a small domed cap that floats above the device on four bent Knicklichter. A spike points down from its centre: the balloon inflates up toward it during the game, and touching the spike is the maximum — inflate past it and the balloon bursts, ending the game in a loss.

Bounding box: ≈ 52 × 52 × 21 mm.

Roof mount

The roof does not sit on the housing — it floats about 140 mm above it, carried by four bent Knicklichter (flexible glow-stick arm bands). Each stick leaves a corner hole of the upper housing near-vertically, bows outward, and sweeps back in to hook into one of the roof's four leg bores.

Roof mount — front

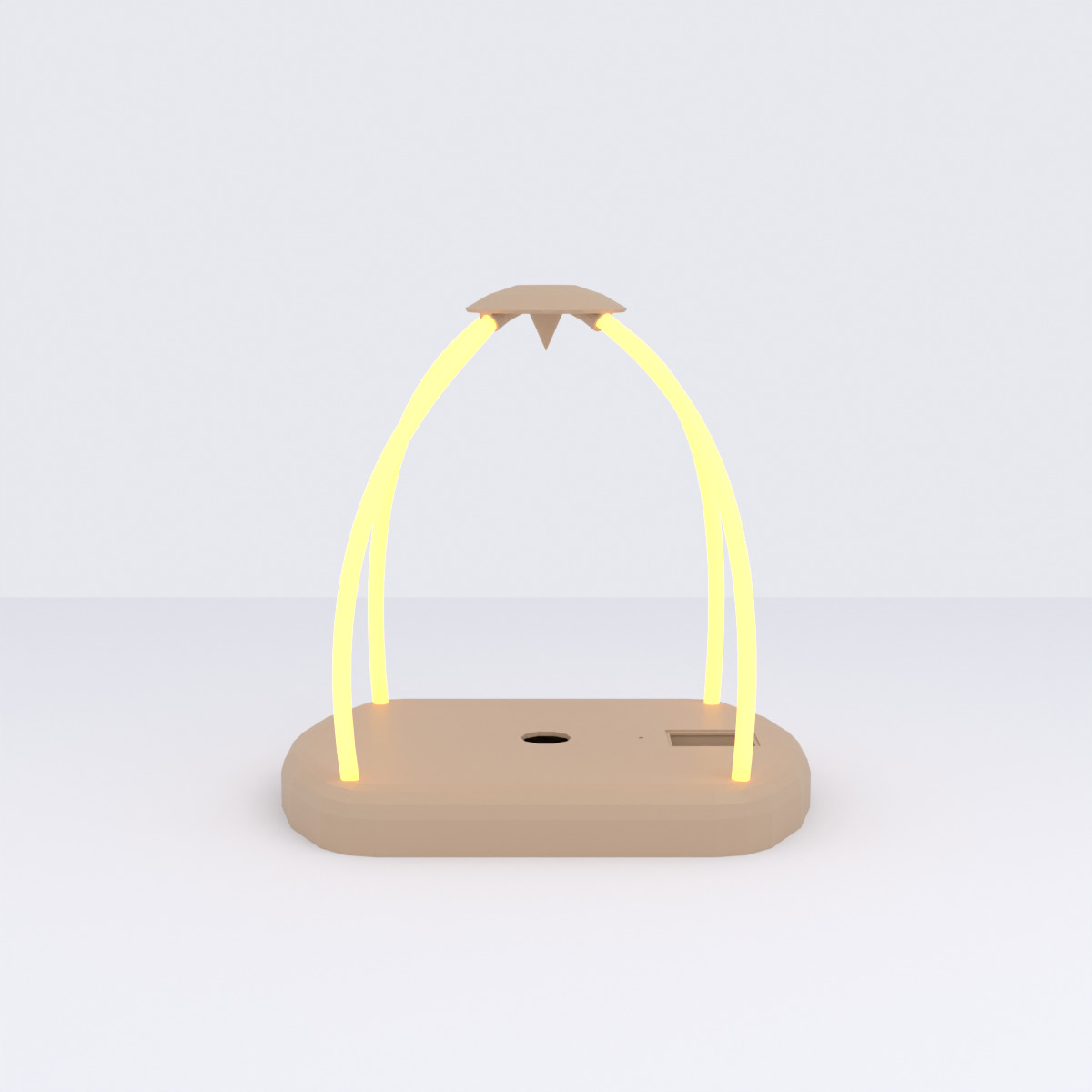

Front — the roof floating on its four sticks
Roof mount — iso

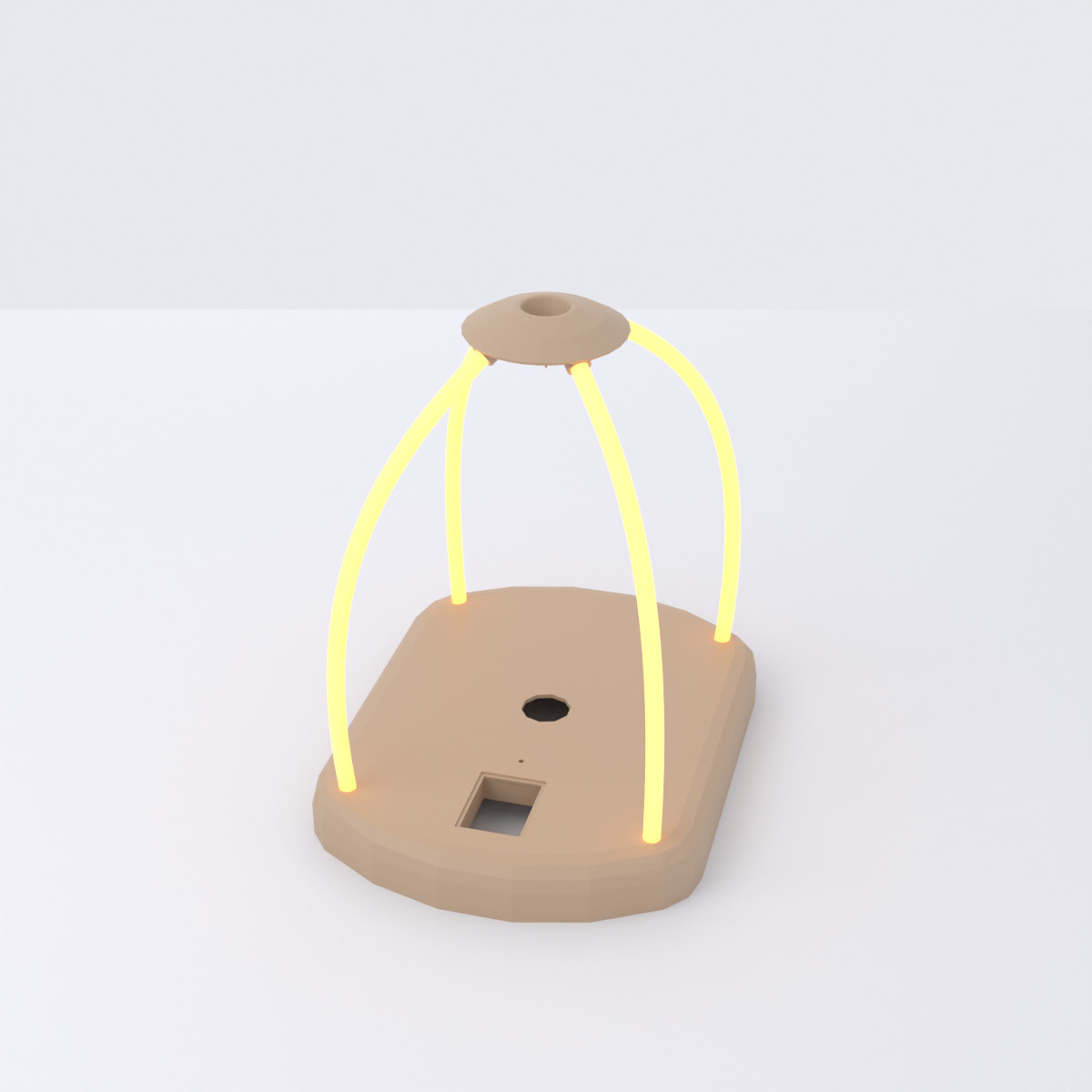

Iso — corner hole to leg-bore bend
