Lower Housing

Gehäuse Unterteil — the lower body shell and base. It is the deep tub that houses the pump and valve, the control board, and the wiring, with a wall cutout for the card module and round holes for the 12 V power connector and a power switch. The upper housing caps it.

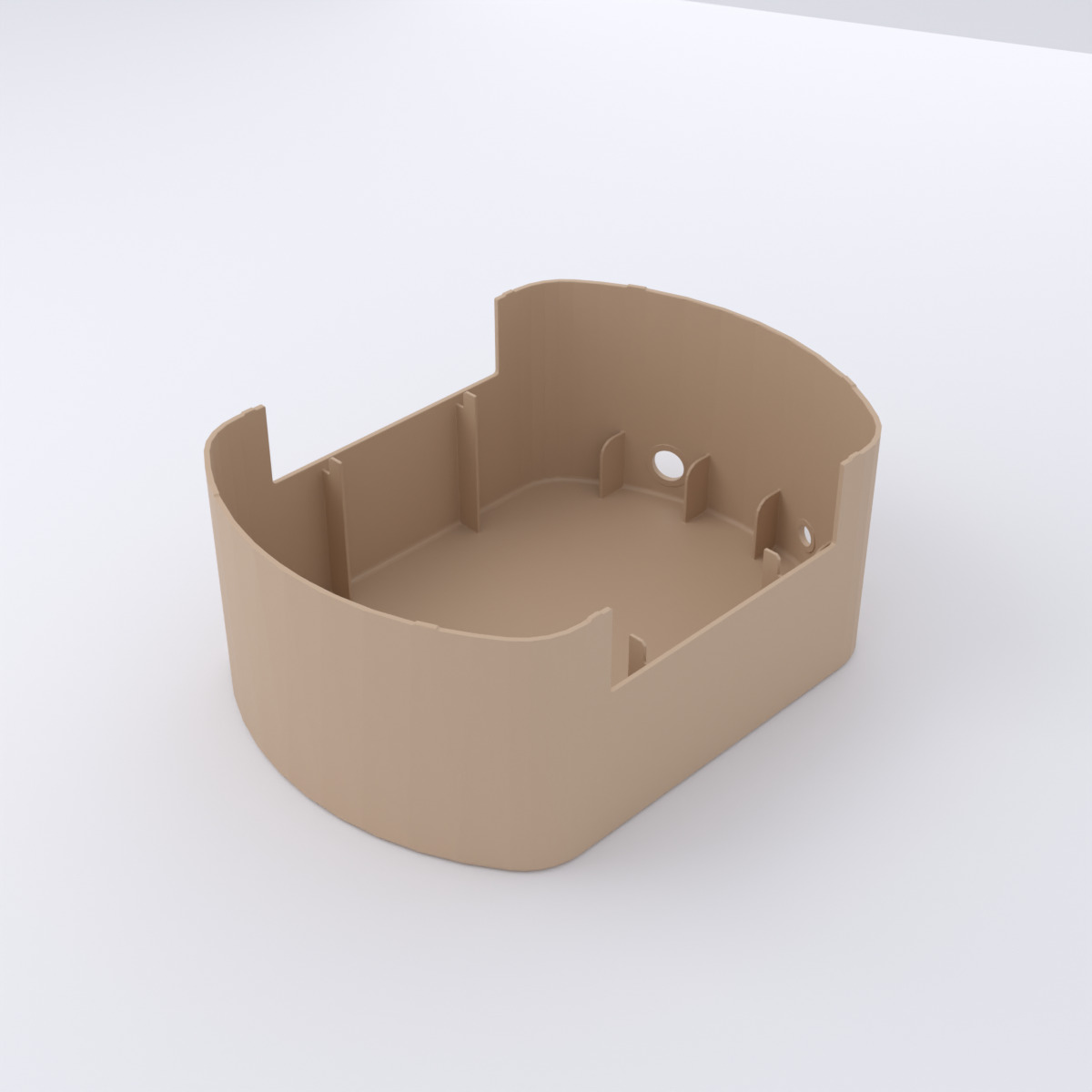

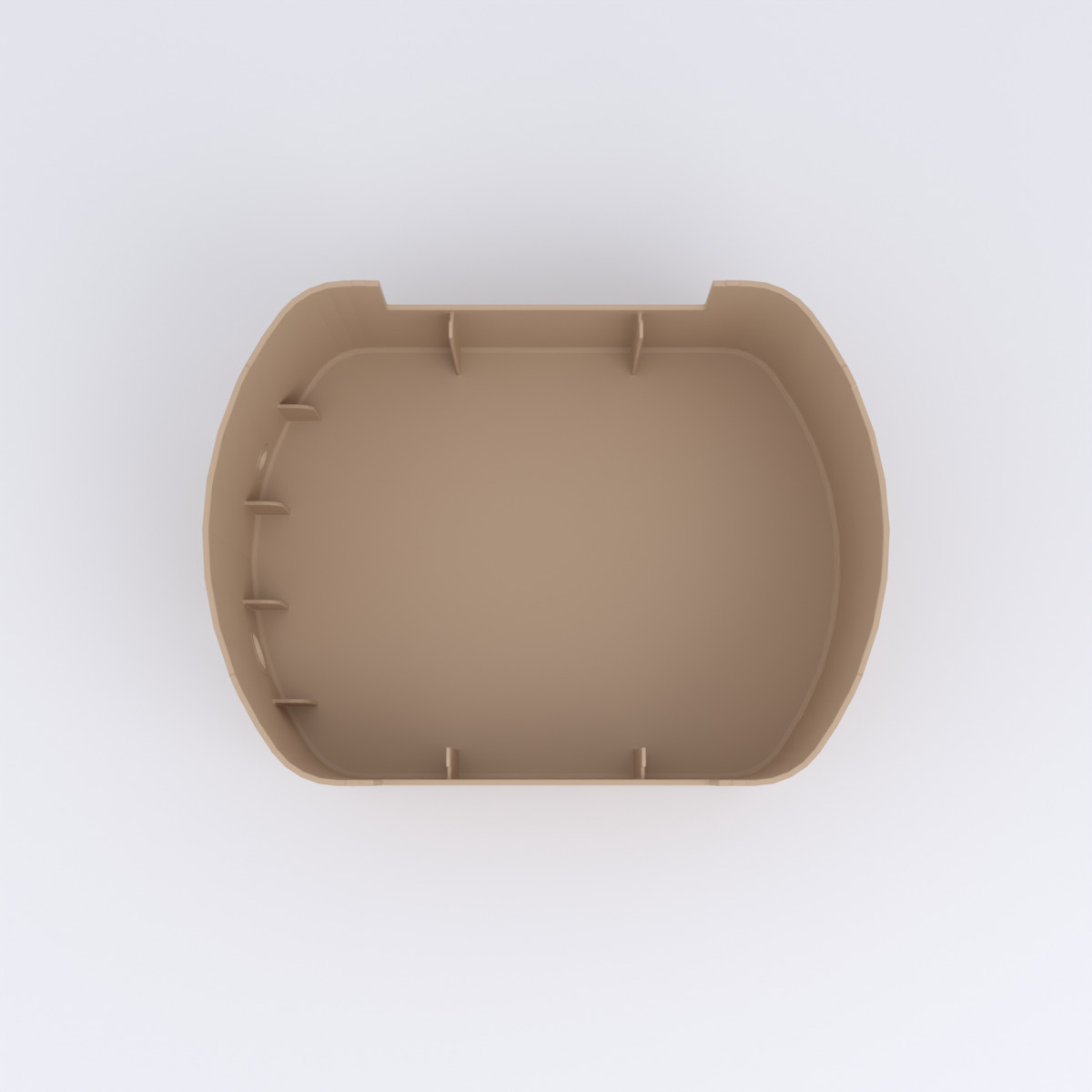

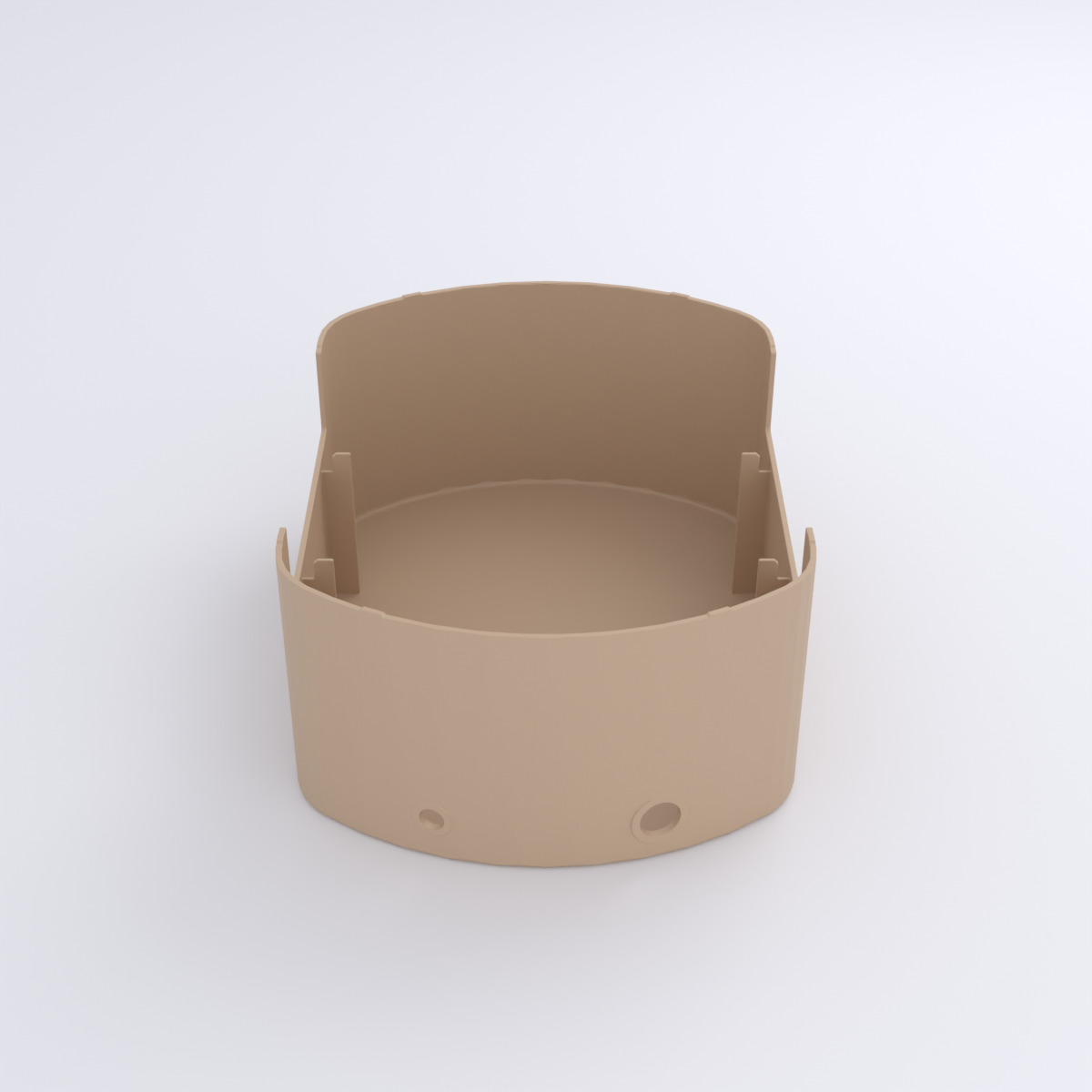

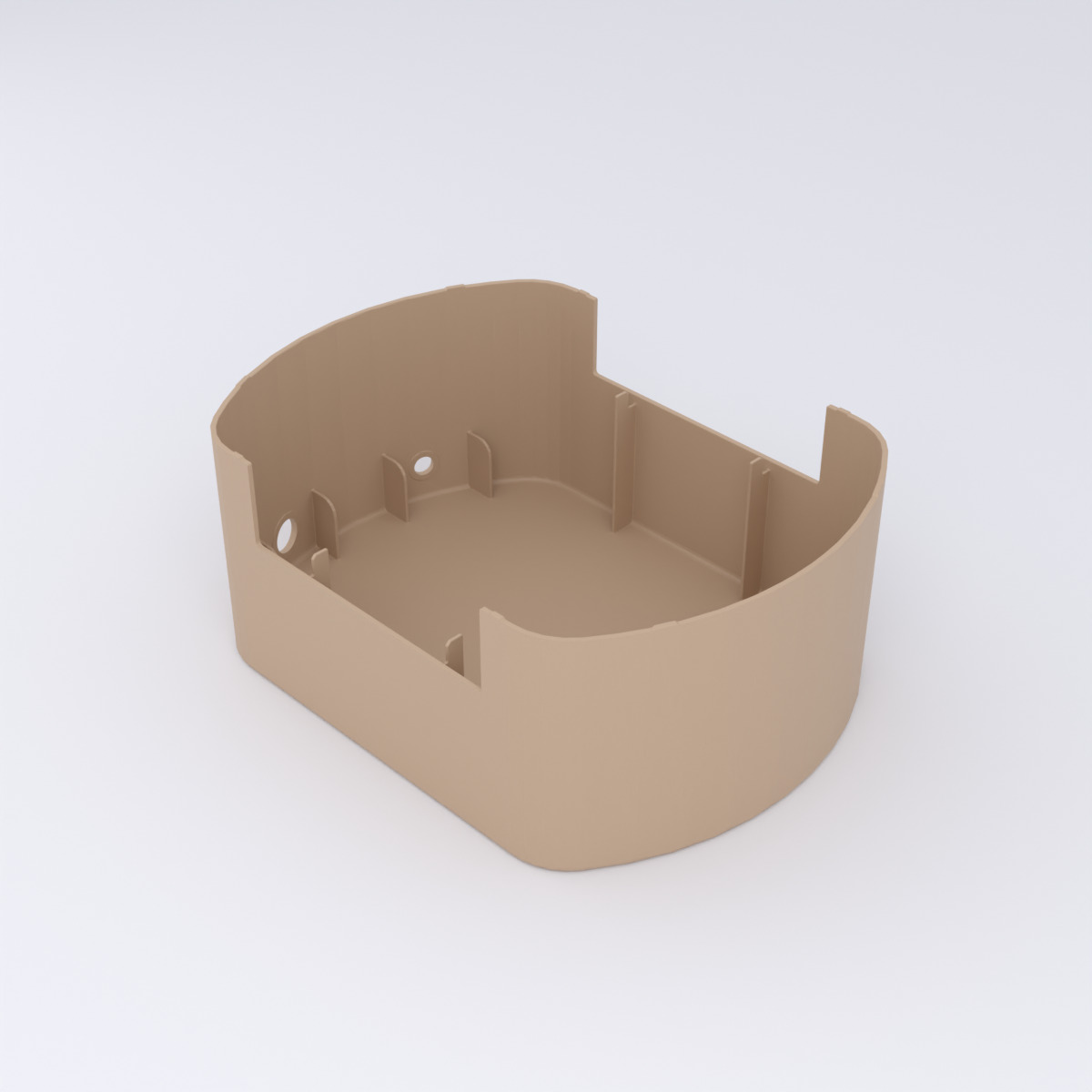

Lower housing — top (into the tub) Lower housing — iso Lower housing — iso (rear) Lower housing — iso (side)

Bounding box: ≈ 170 × 126 × 71 mm.

CAD & print files
