Upper Housing¶

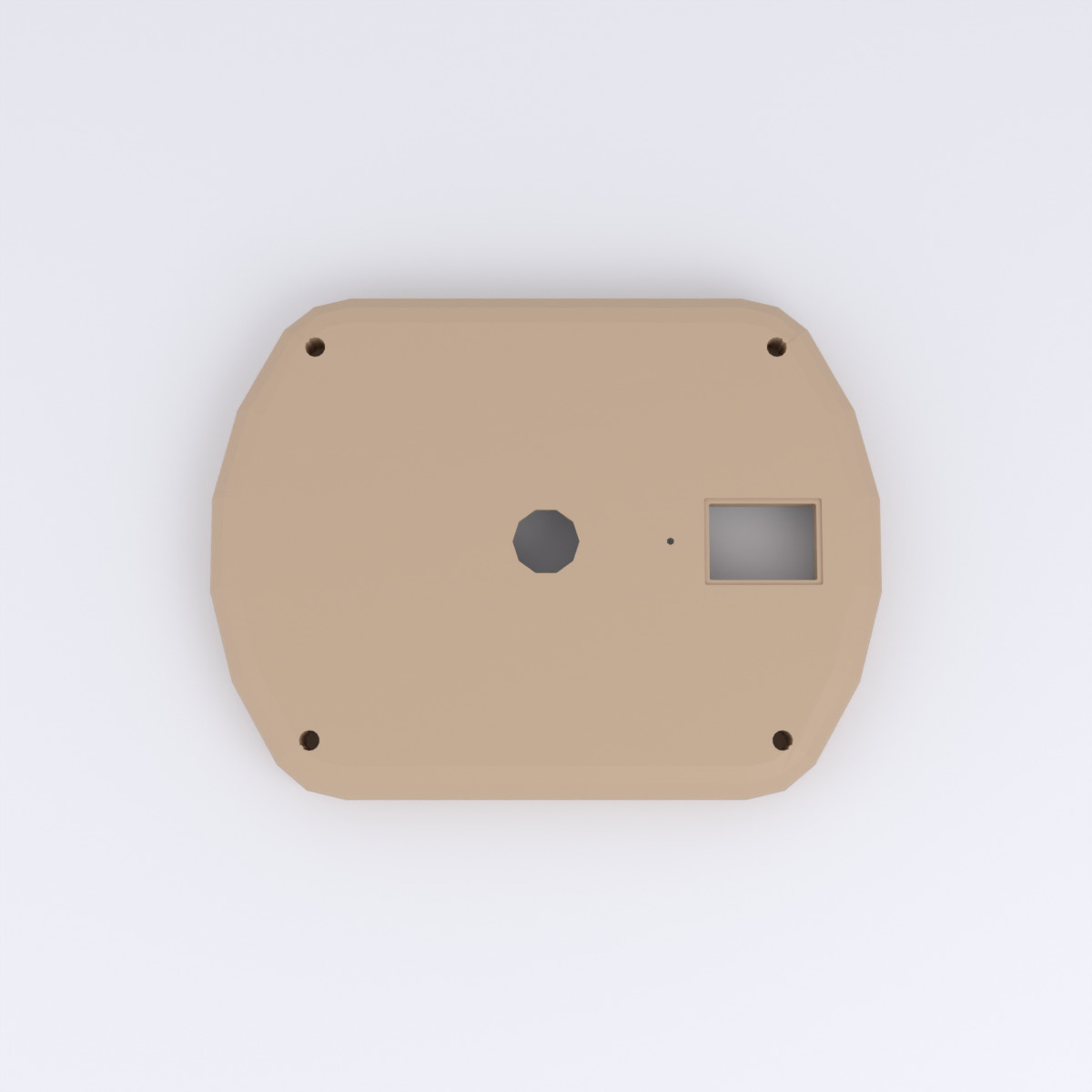

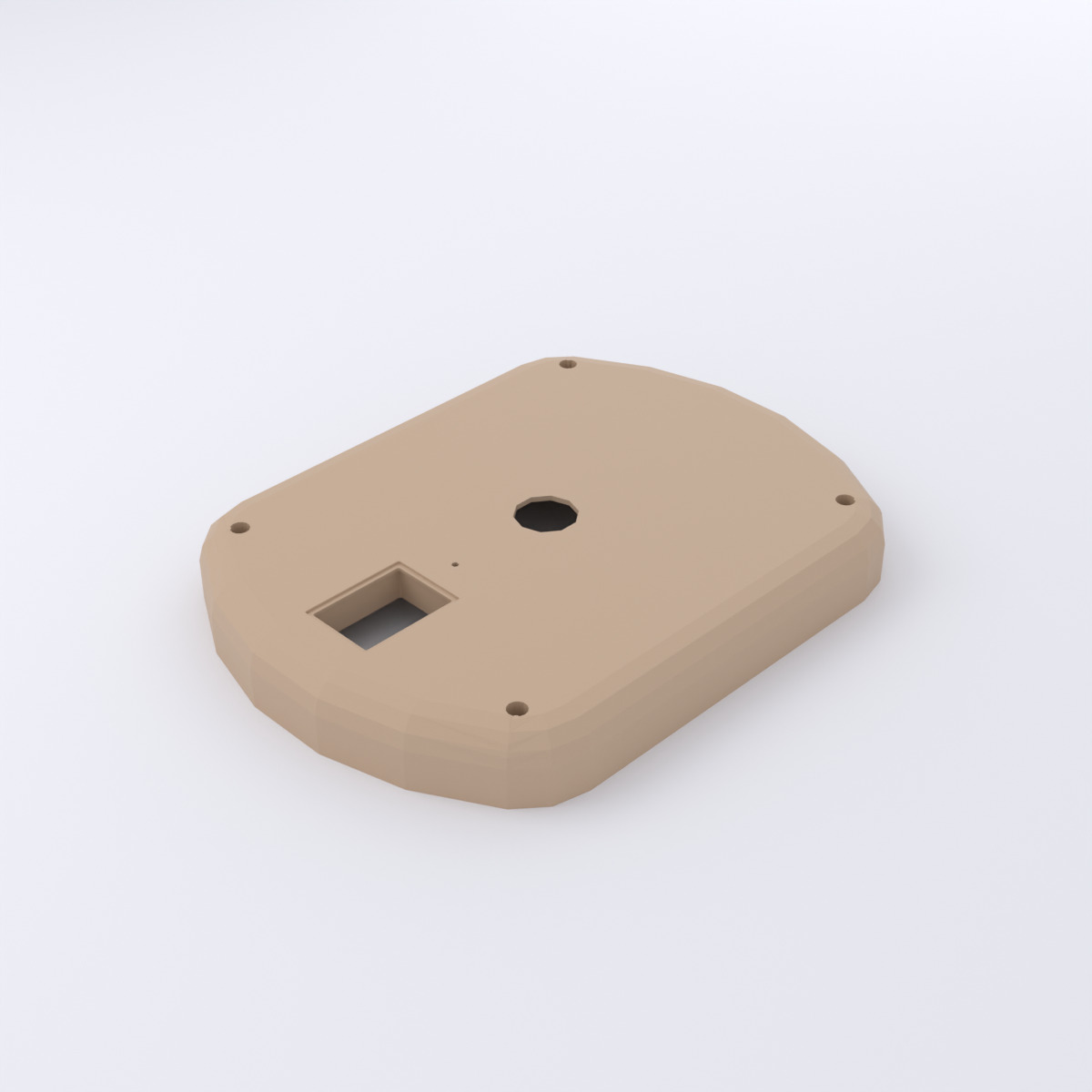

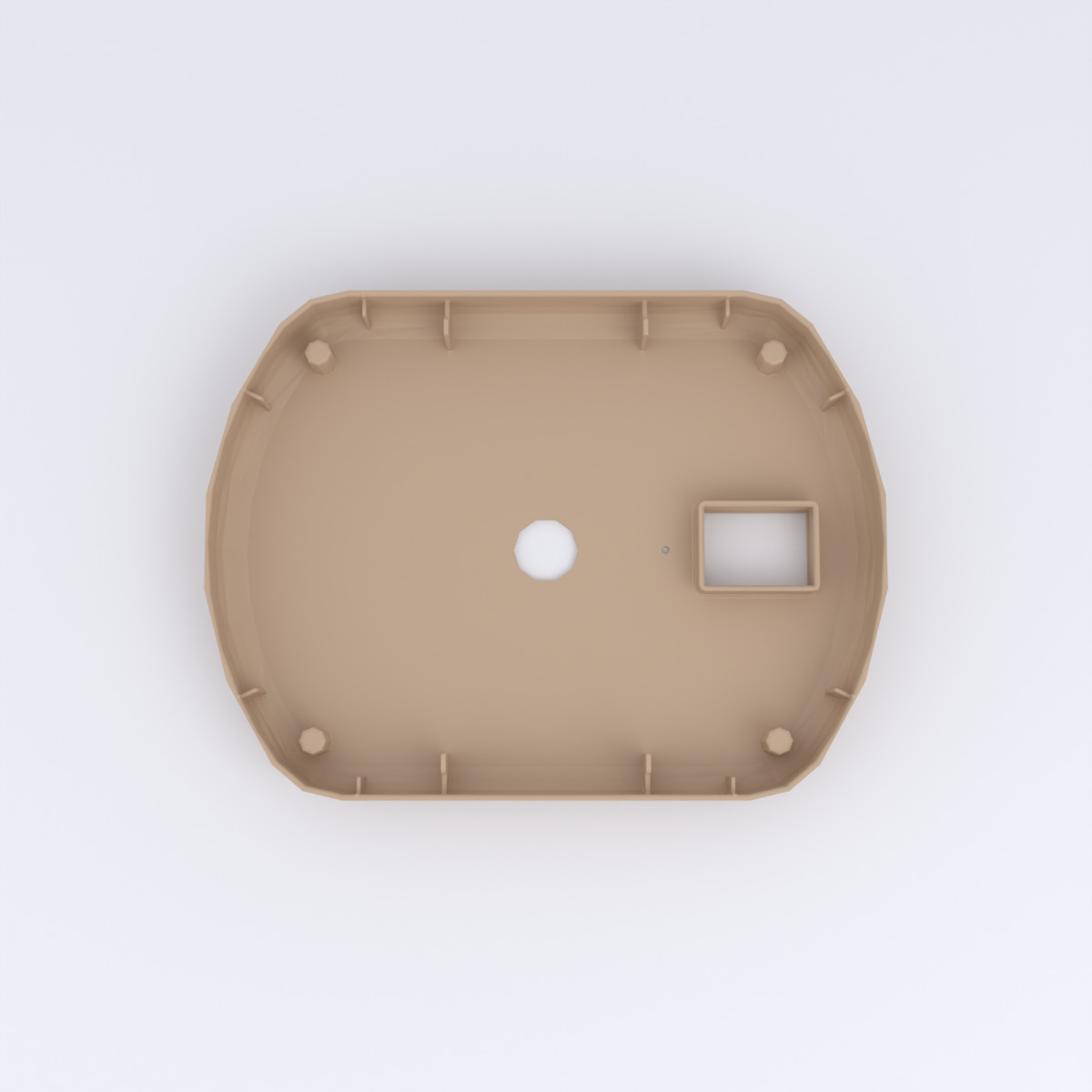

Gehäuse Oberteil — the upper body shell. Its outer face carries the display window cutout and the passage for the balloon adapter and hose nozzle; it mates onto the lower housing. The four holes at the corners take bendable Knicklichter — flexible glow-stick arm bands — that plug into the roof's hollow legs, holding it in place above the housing.
Bounding box: ≈ 172 × 130 × 20 mm.
CAD & print files¶
- STL:
upper-housing.stl - STEP:
upper-housing.stp
